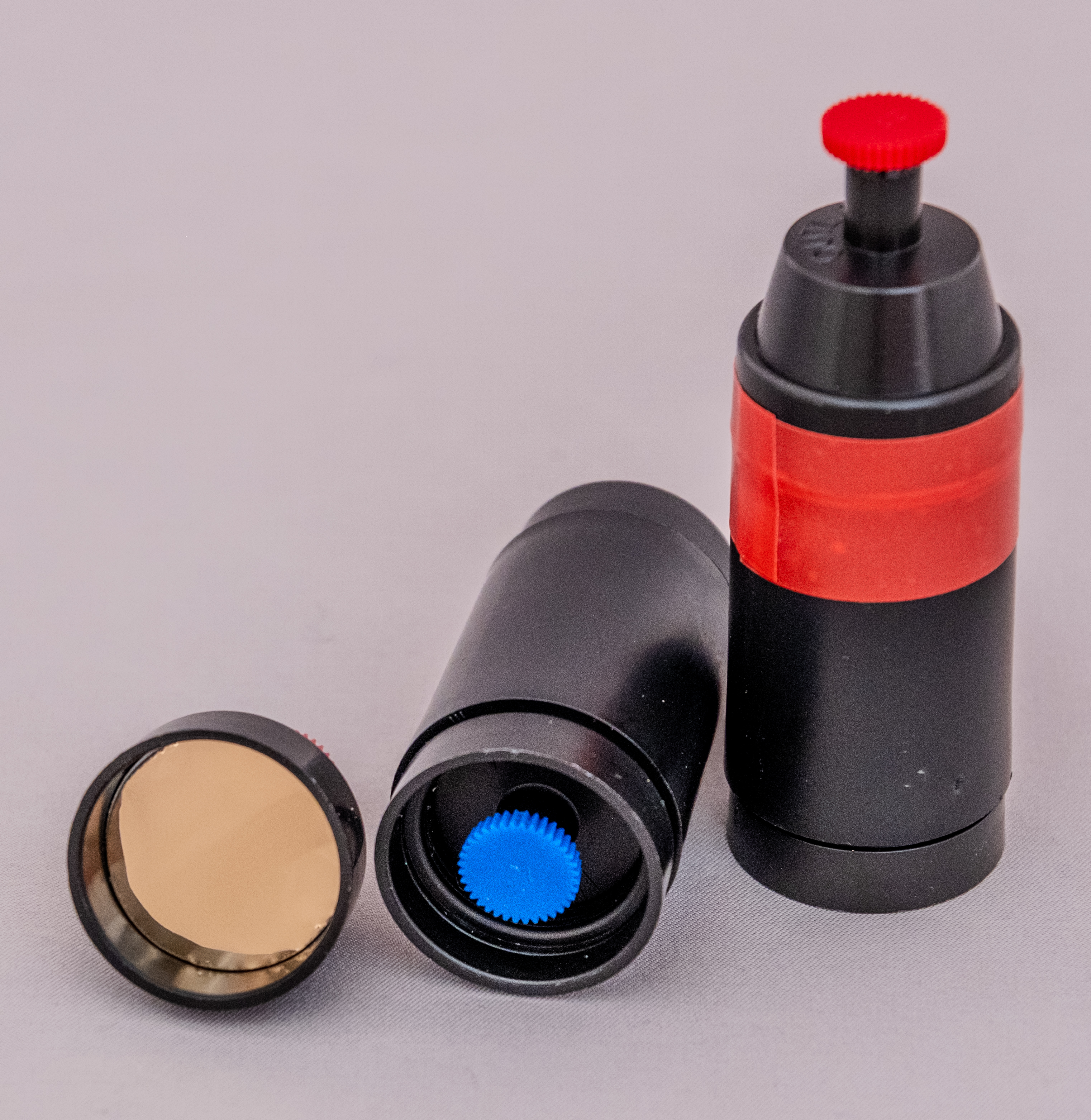

25 mm Membrane Filters and Filter Cassettes

25mm cassettes are pre-assembled with filter and support pads ready for use. The cassette bodies are made of carbon charged polypropylene for anti-static properties. Pre-assembled cassettes are packaged 50 cassettes per box and include labels for writing sampling information such as date, start and stop times, flow rate, etc. Our gold-coated filters are available for German Norm VDI 3492 and for ISO-14966.

25 mm Membrane Filters and Filter Cassettes, gold filter, goudfilter

Catalog Number	*Description*
CSFM25080	Phase Contrast Microscopy (PCM), 0.8µm pore size filter with grid pattern
CS25080	Phase Contrast Microscopy (PCM), 0.8µm pore size filter without grid pattern
CS25045	Transmission Electron Microscopy (TEM), 0.45µm pore size filter without grid
CS25080PC	25 mm diameter polycarbonate filter, 0.8µm pore size in sampling cassette. Box of 50

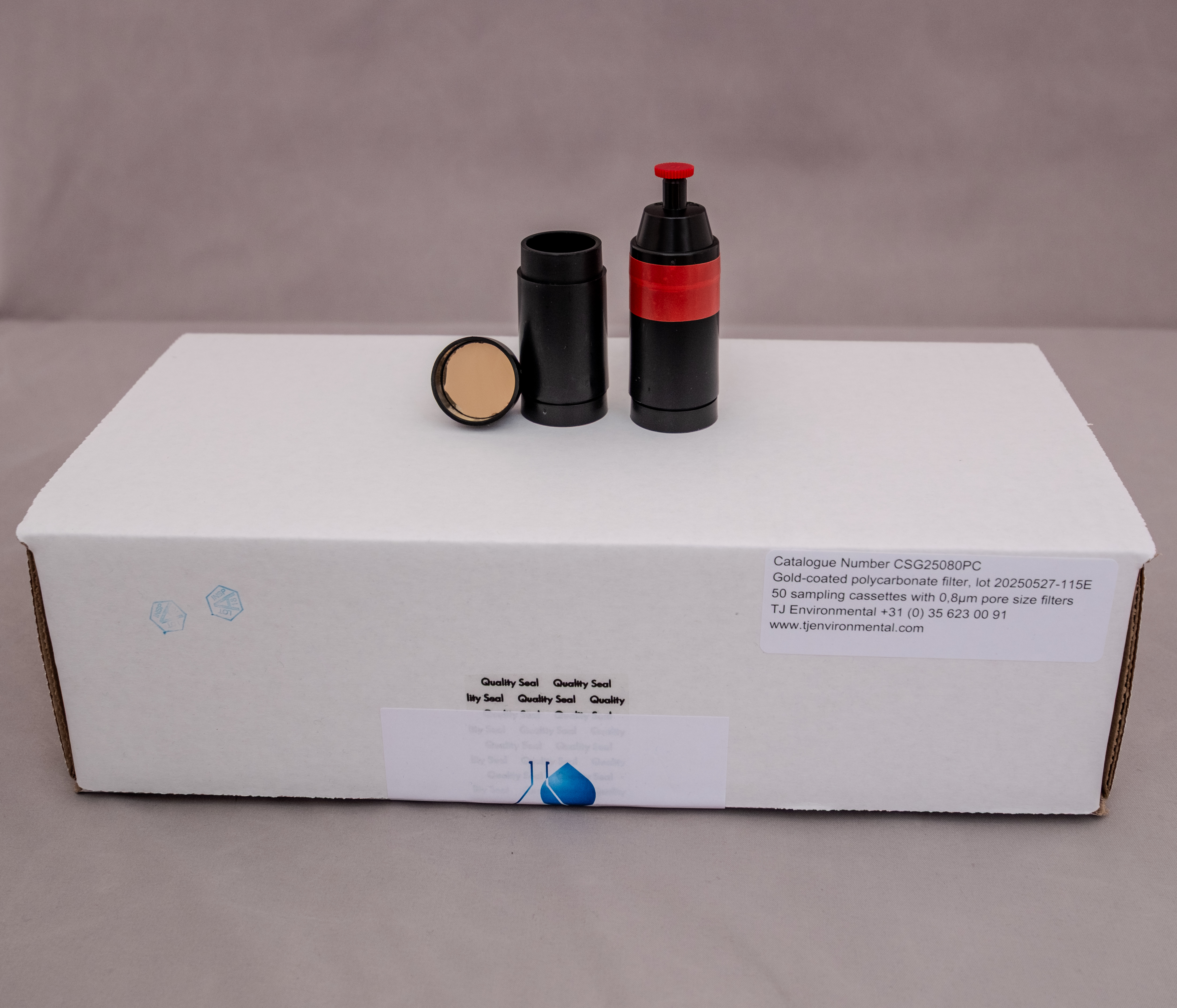

CSG25080PC	Gold-coated 0.8µm pore size, polycarbonate filter for Scanning Electron Microscopy (SEM) (REM), ISO
CSG25080PC2	Gold-coated 0.8µm pore size, polycarbonate filter for Scanning Electron Microscopy (SEM) (REM), VDI

25mm diameter, 0.8 micron filters and support pads, for use with either a metal or plastic sampling head (cassette). These easy to clear, mixed cellulose ester filters are perfect for asbestos fiber counting with phase contrast microscopy analysis. They are packaged 100 filters per box.

Catalog Number	*Description*
F25080	25mm diameter, 0.8µm pore size MCE filter without grid pattern
F25080G	25mm diameter, 0.8µm pore size MCE filter with black grid pattern
FM25080	25mm diameter, 0.8µm pore size MCE filter with green grid pattern
F25080PCG	25mm diameter, 0.8µm pore size gold-coated polycarbonate filter for Scanning Electron Microscopy (SEM) (REM), ISO
F25080PCG2	25mm diameter, 0.8µm pore size gold-coated polycarbonate filter for Scanning Electron Microscopy (SEM) (REM), VDI
FM25080PC	25mm diameter, 0.8µm pore size polycarbonate filter

3-piece filter cassette bodies without filters or support pads

3-piece filter cassette bodies with support pads, but without filters, are also available. The 25mm cassettes are made of conductive carbon charged polypropylene. They include color-coded end plugs and are packaged 50 cassettes per box.

Catalog Number	Description
TJE-Z000UB	3-piece filter cassette bodies
